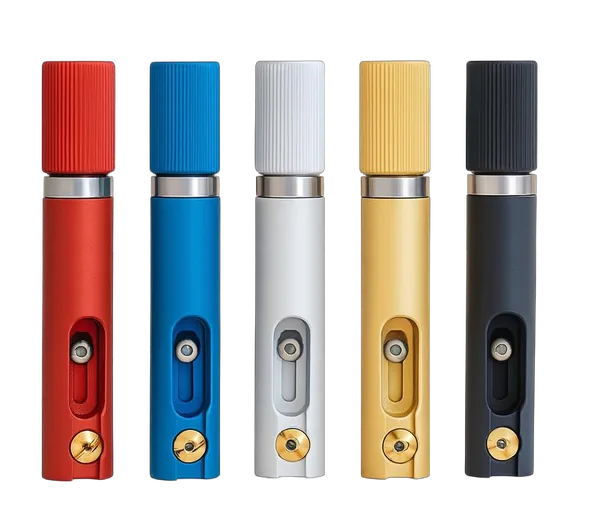

GUITAR
THX
The headless guitar bridge, one bearing-tuned piece per string.
- Weight / piece
- 25 g
- Body / baseplate
- 6000 Al
- Saddle
- Solid brass
- Bearing
- ABEC3 stainless
Price on requestOrder THX
Headless guitar & bass hardware
Engineered to perform. Built to last.
Ball-bearing headless bridges, precision-machined in our own facility from aircraft-grade aluminum and solid brass. Every string tunes smooth, every time.
Just released
Meet TAN NANO
19 g per string. Sits flat on the body. Installs with just two screws.

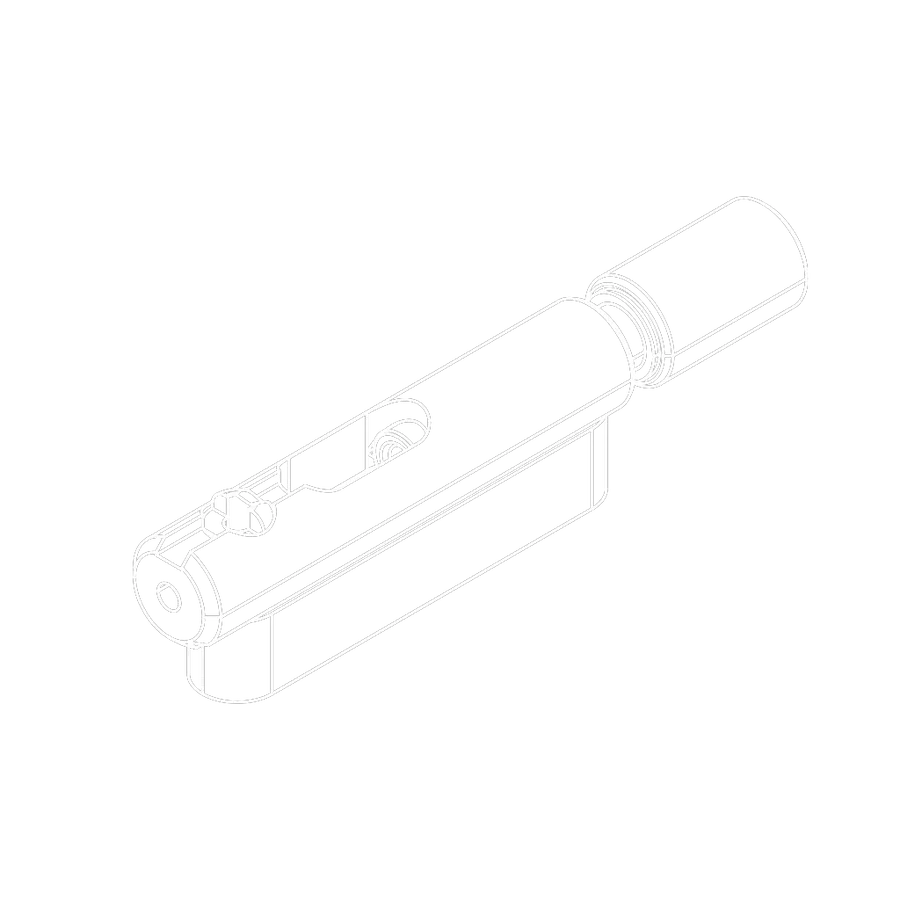

Our innovation
No more friction. No more breakage.
On a conventional headless bridge, string tension loads the tuning thread directly. It binds, stiffens and snaps strings. TAN's ball-bearing mechanism takes that load instead.
Effortless tuning, every time
Each bridge piece turns smoothly and independently, so you dial in pitch and get back to playing.
Built for multiscale
Individual saddles per string give complete control over placement and scale length.
Any string count
Integrated top locks mount any number of strings and mixed scales. Top locks are included.
- 25,000+Headless Pieces Delivered
- 5,000+Guitars Fitted With TAN
- 350+Guitar Makers Worldwide
- < 0.2%Defect Rate
- 100%Machined In-House
Our bridges
Guitar. Bass. Tremolo.
6000-series aircraft-grade aluminum bodies, solid brass saddles, ABEC3 stainless bearings and stainless hardware throughout.

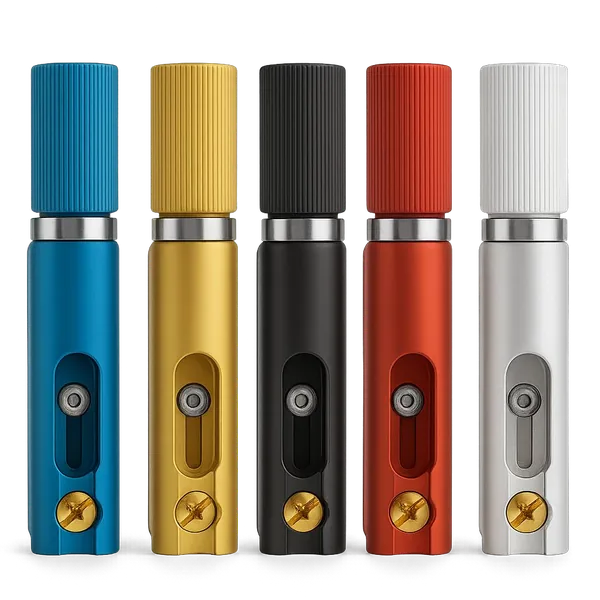

BASS
TBX
The same bearing mechanism, scaled up for bass string tension.
- Weight / piece
- 58 g
- Body / baseplate
- 6000 Al
- Saddle
- Solid brass
- Bearing
- ABEC3 stainless
Price on requestOrder TBX

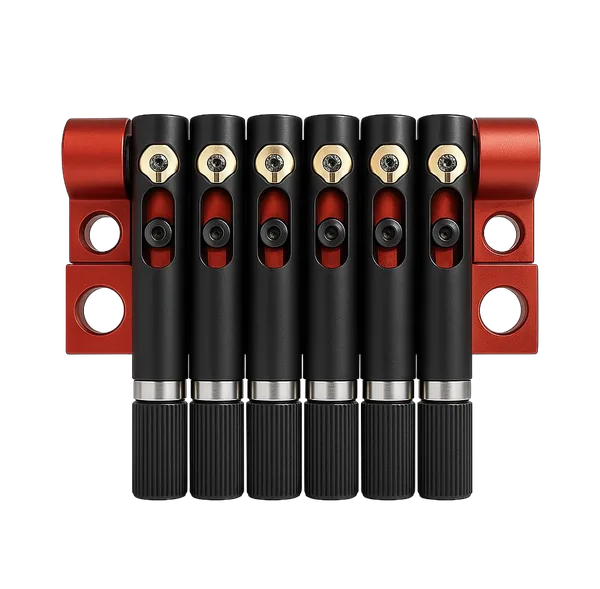

TREMOLO
TT6 & TT7
A headless tremolo for 6 and 7 strings with a solid brass block.
- Weight
- 470 g / 520 g
- Baseplate
- 7000 Al
- Tremolo block
- Solid brass
- Bearing
- ABEC3 stainless
Price on requestOrder TT6 / TT7

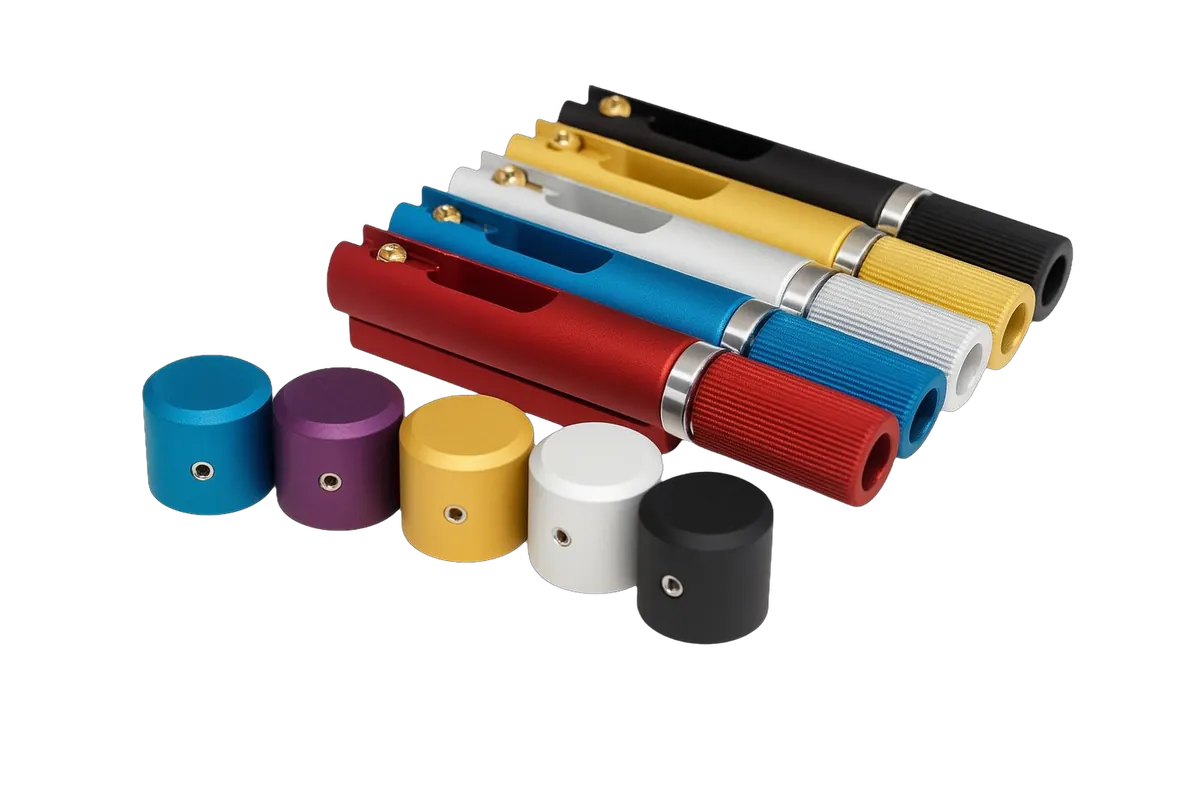

Endless color
As unique as your sound.
From sleek black to bold anodized hues. Match the body, or make the bridge the statement.
- Black
- Gold
- Natural
- Red
- Blue
- Purple
Custom colors available on OEM runs.
Matching knobs & strap pins
Complete the look with control knobs and strap pins (strap buttons) anodized in the same finishes as your bridge.
Add them to your orderTrusted by builders
Designed by luthiers, for luthiers.
From boutique workshops to custom builders, every component is built with a deep understanding of guitar building.

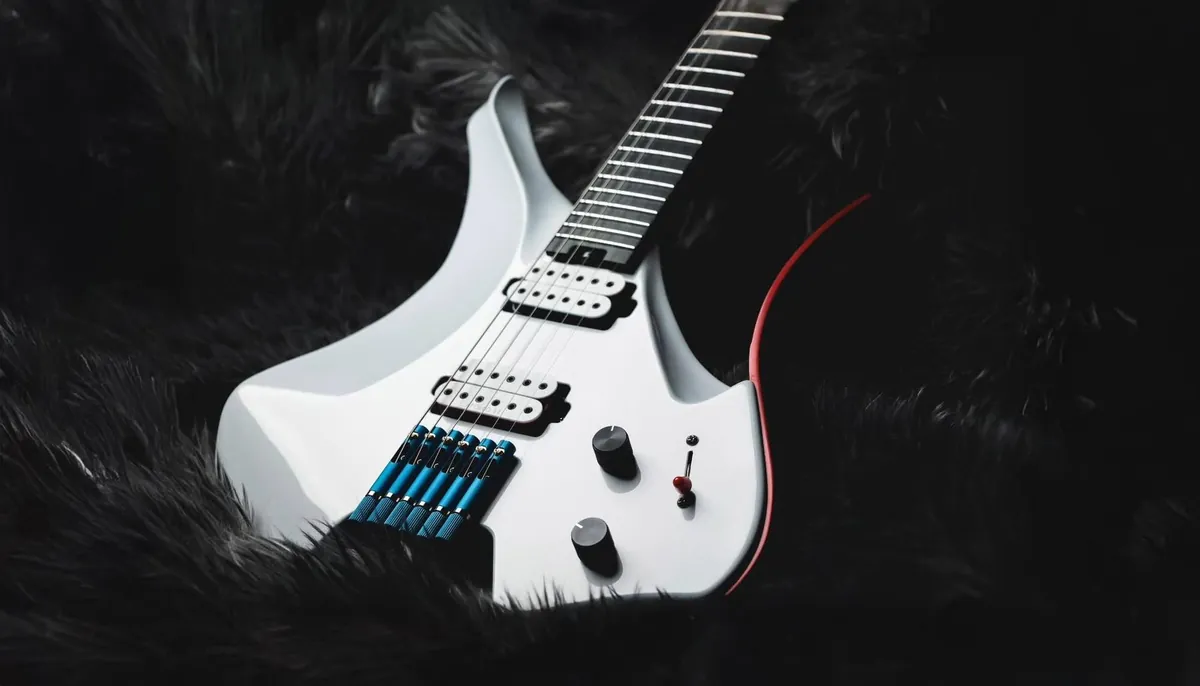

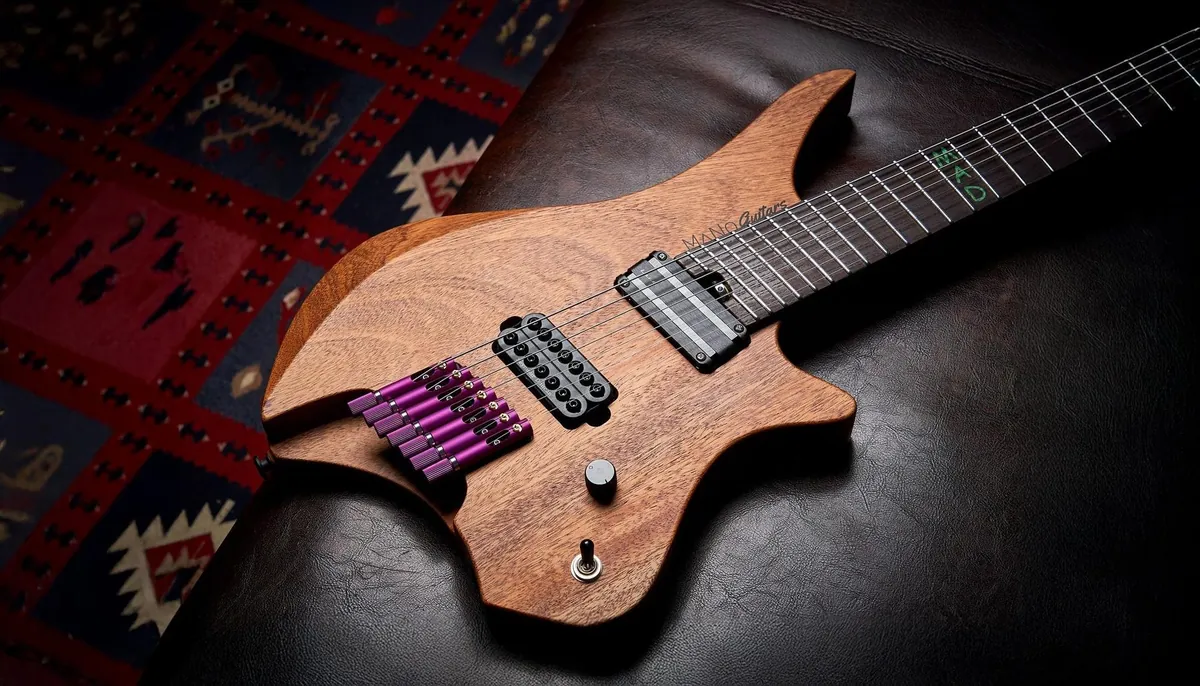

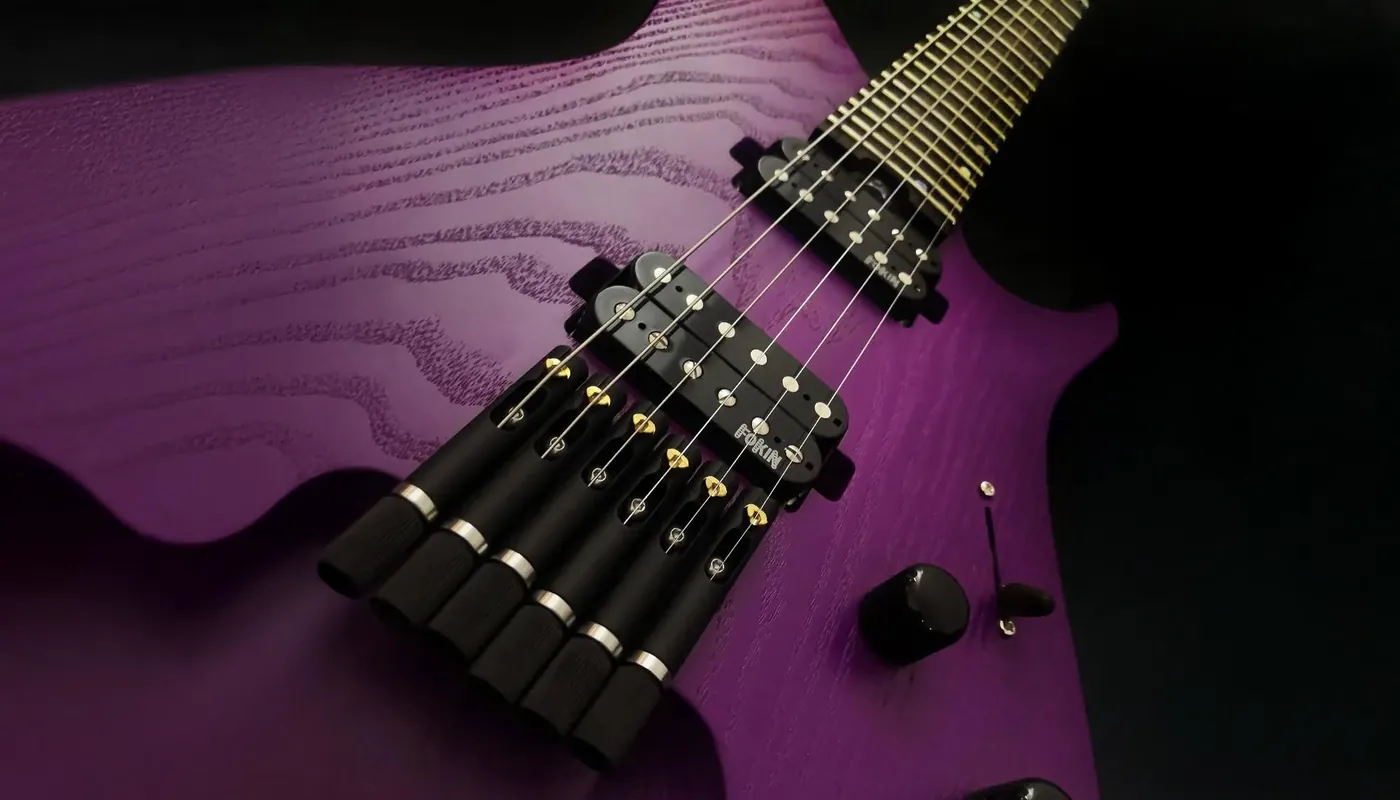

From the workshop
Latest builds.
Guitars from builders around the world, fitted with TAN Bridges hardware. Straight from @tan_bridge on Instagram.
Latest from TAN
New & Upcoming
Just released: TAN NANO, our lightest bridge yet. It sits flat on the body and mounts with only two screws. Next up: the TAN HT6 hardtail.
JUST RELEASED · EARLY ACCESS
TAN NANO
A single-string bridge that mounts flat on the body surface with just two screws. Each unit weighs 19 g, mounting hardware included.
- 19 g per string, hardware included
- Surface mount: sits flat, only 2 screws
- 7-series aerospace-grade aluminum, black finish
- First batch shipped to luthiers
PROTOTYPE
TAN HT6 Hardtail
A string-through 6-string fixed bridge with tool-free thumbwheel intonation and a laser-etched scale in every saddle lane.
- Thumbwheel: one turn = 0.5 mm
- Brass or aluminum plate
Partners & OEM
Special pricing
For luthiers, resellers, installers and OEMs.
If our components could improve your builds or your business, we'd like to hear from you.
- OEM customization tailored to your needs
- In-house design team for seamless integration
- Dealer and volume pricing with dedicated support
Free tool
Fret calculator
Fret positions for straight and multiscale necks, with DXF and PDF templates. Free for every builder, right in your browser.
Open the calculatorOrder
Let's build something.
Pick your bridge, string count and finish. We'll reply with a quote including shipping. No payment is taken here.
Custom colors or OEM runs? Choose “Other” and tell us what you need.
